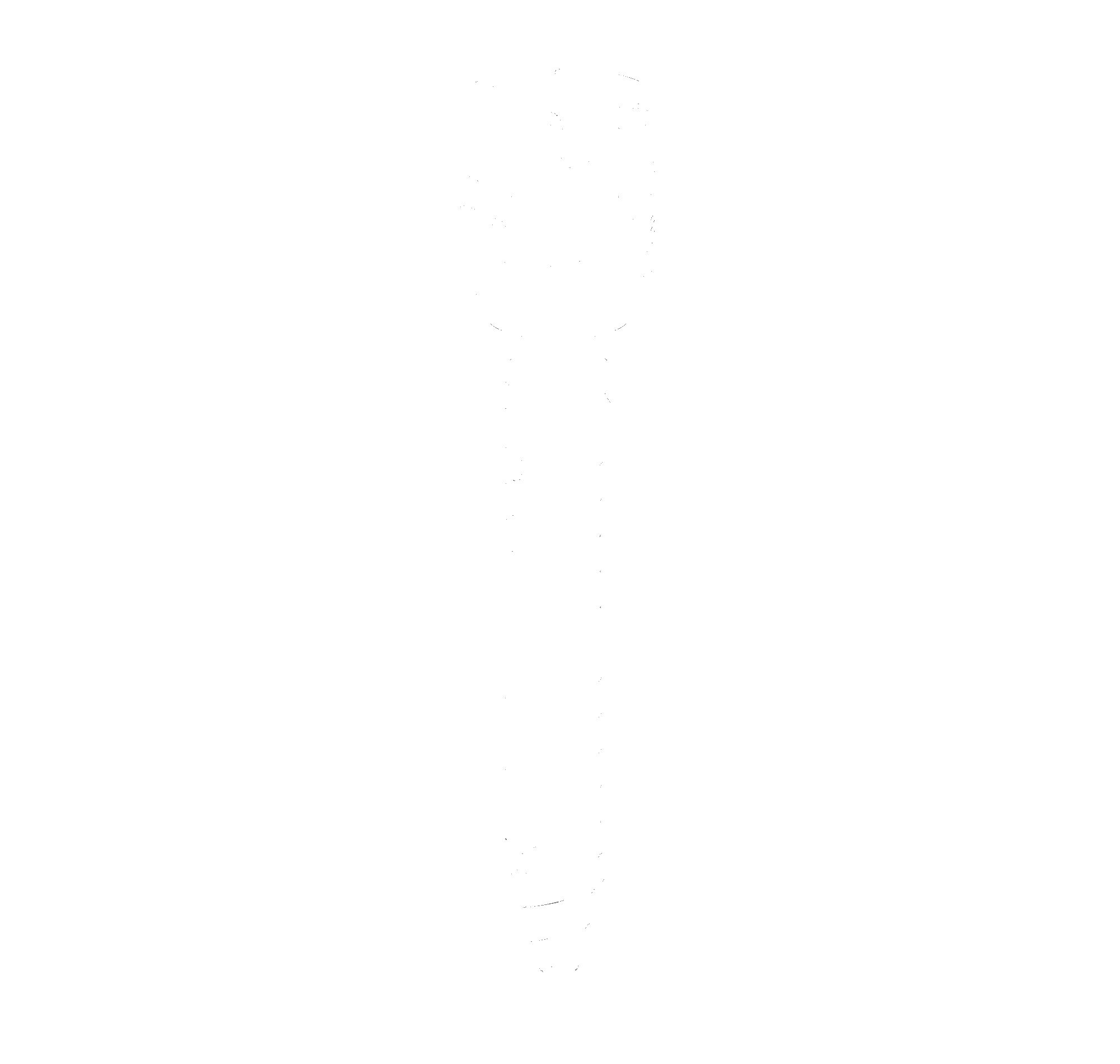

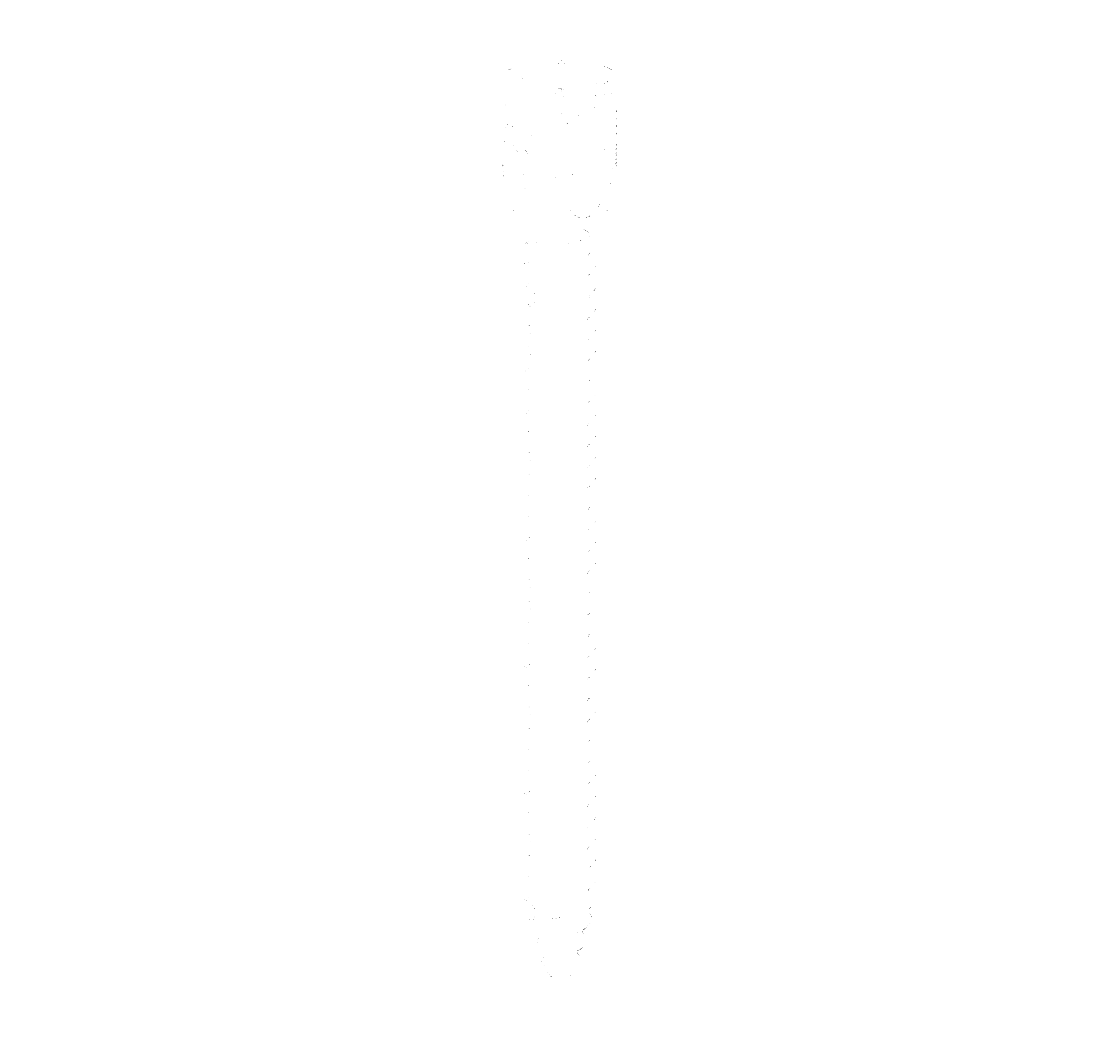

BLACK DIAMOND PEDICLE SCREWS
| ⌀4.5mm | ⌀5.5mm | ⌀6.5mm | ⌀7.5mm | ⌀8.5mm |
|---|---|---|---|---|
| 30mm | 30mm | 30mm | 30mm | 30mm |
| 35mm | 35mm | 35mm | 35mm | 35mm |
| 40mm | 40mm | 40mm | 40mm | 40mm |
| 45mm | 45mm | 45mm | 45mm | 45mm |
| 50mm | 50mm | 50mm | 50mm | |
| 55mm | 55mm | 55mm | 55mm | |
| 60mm | ||||
| 70mm | ||||
| 80mm | ||||
| 90mm |

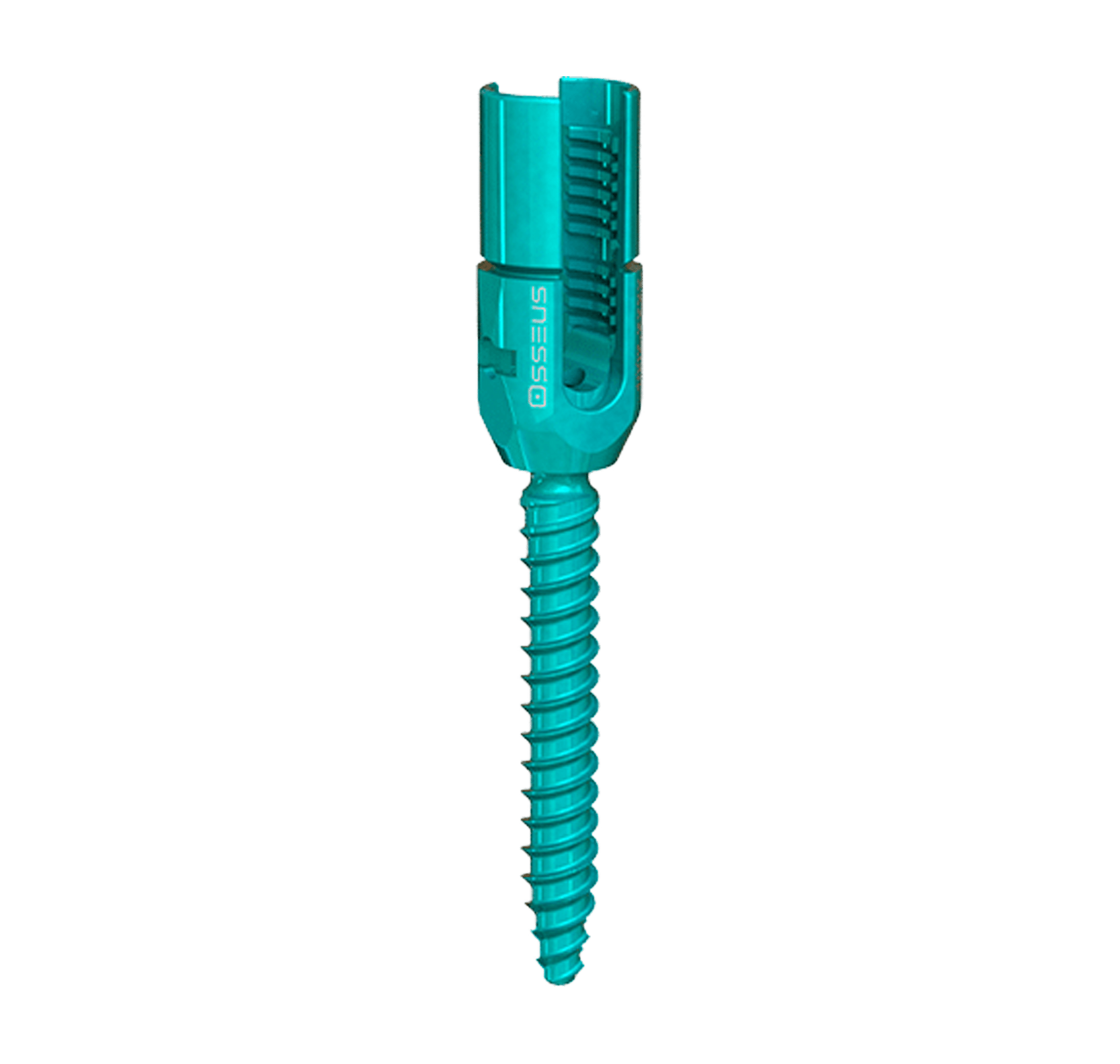

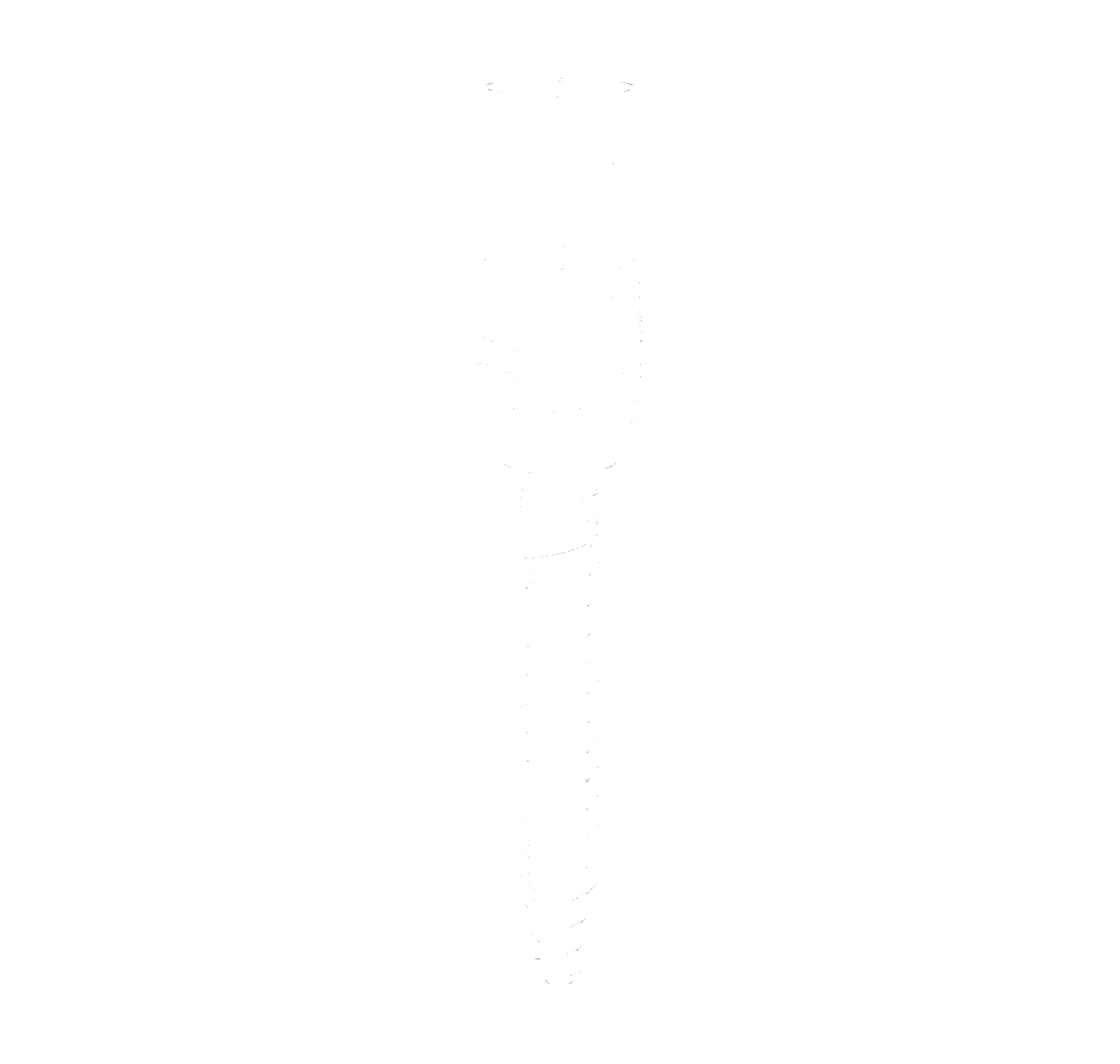

BLACK DIAMOND REDUCTION PEDICLE SCREWS
| ⌀5.5mm | ⌀6.5mm | ⌀7.5mm |
|---|---|---|
| 35mm | 35mm | 35mm |
| 40mm | 40mm | 40mm |
| 45mm | 45mm | 45mm |
| 50mm | 50mm | 50mm |
| 55mm | 55mm | 55mm |

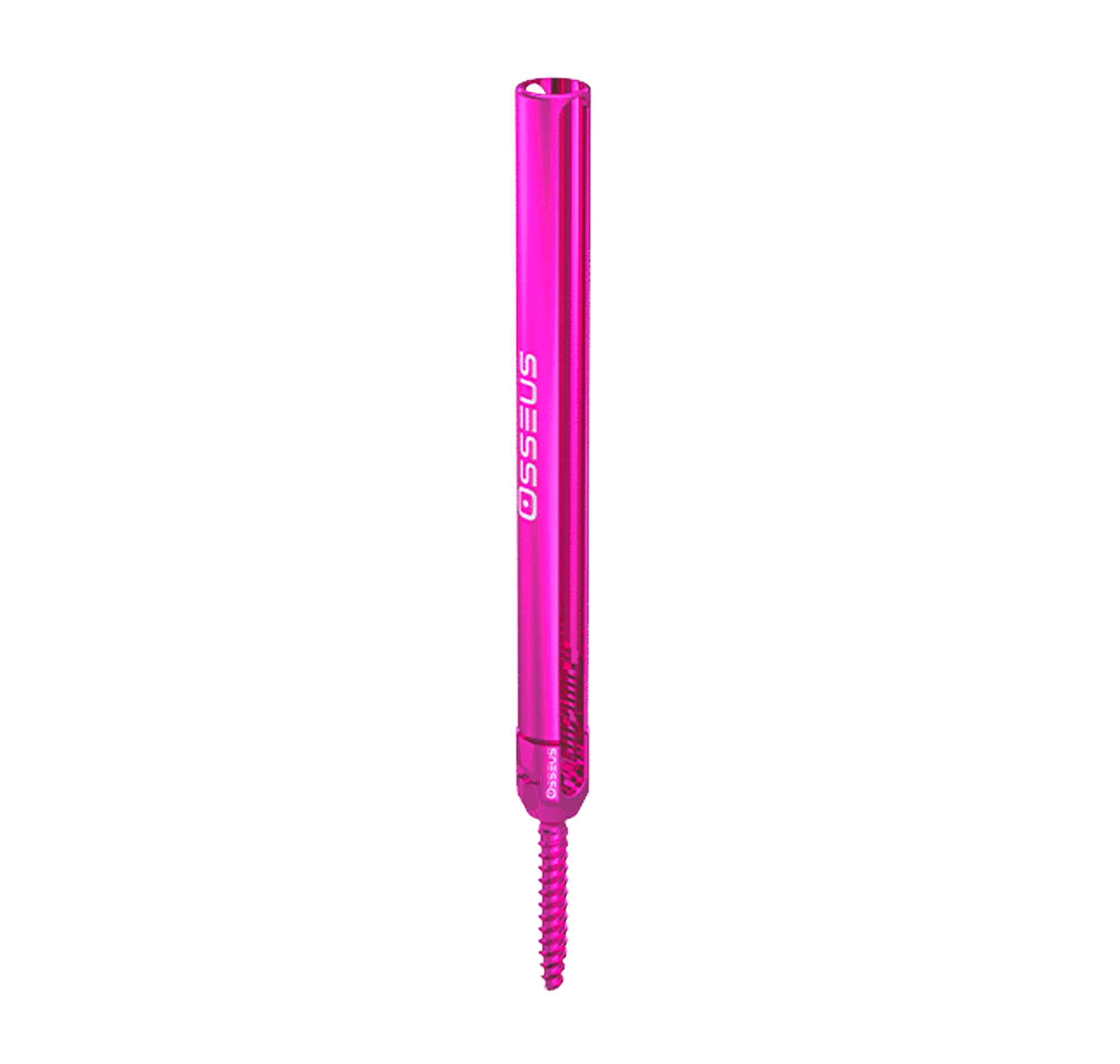

BLACK DIAMOND PERCUTANEOUS PEDICLE SCREWS
| ⌀5.5mm | ⌀6.5mm | ⌀7.5mm | ⌀8.5mm |
|---|---|---|---|
| 30mm | |||
| 35mm | 35mm | 35mm | 35mm |
| 40mm | 40mm | 40mm | 40mm |
| 45mm | 45mm | 45mm | 45mm |
| 50mm | 50mm | 50mm | 50mm |
| 55mm | 55mm | 55mm | 55mm |

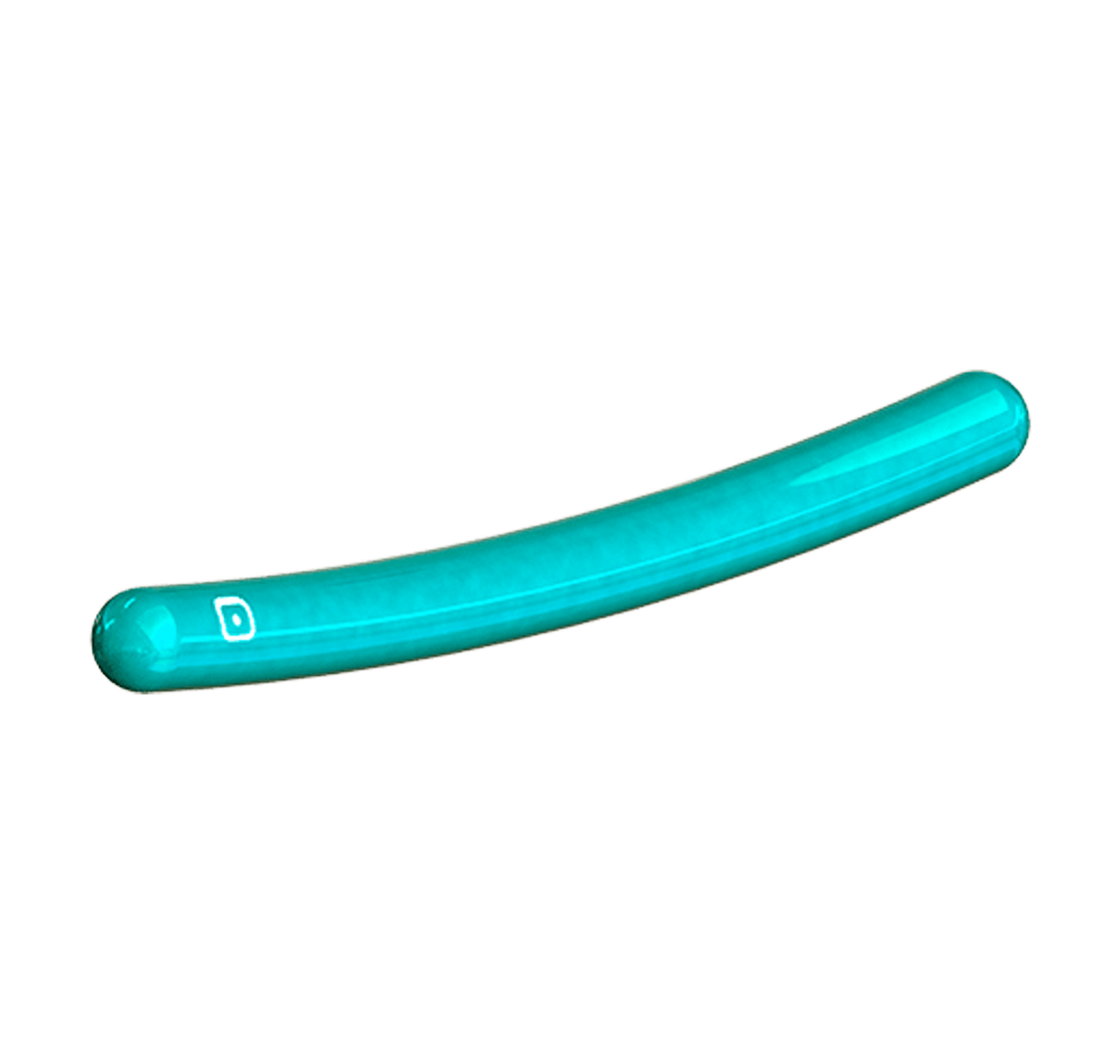

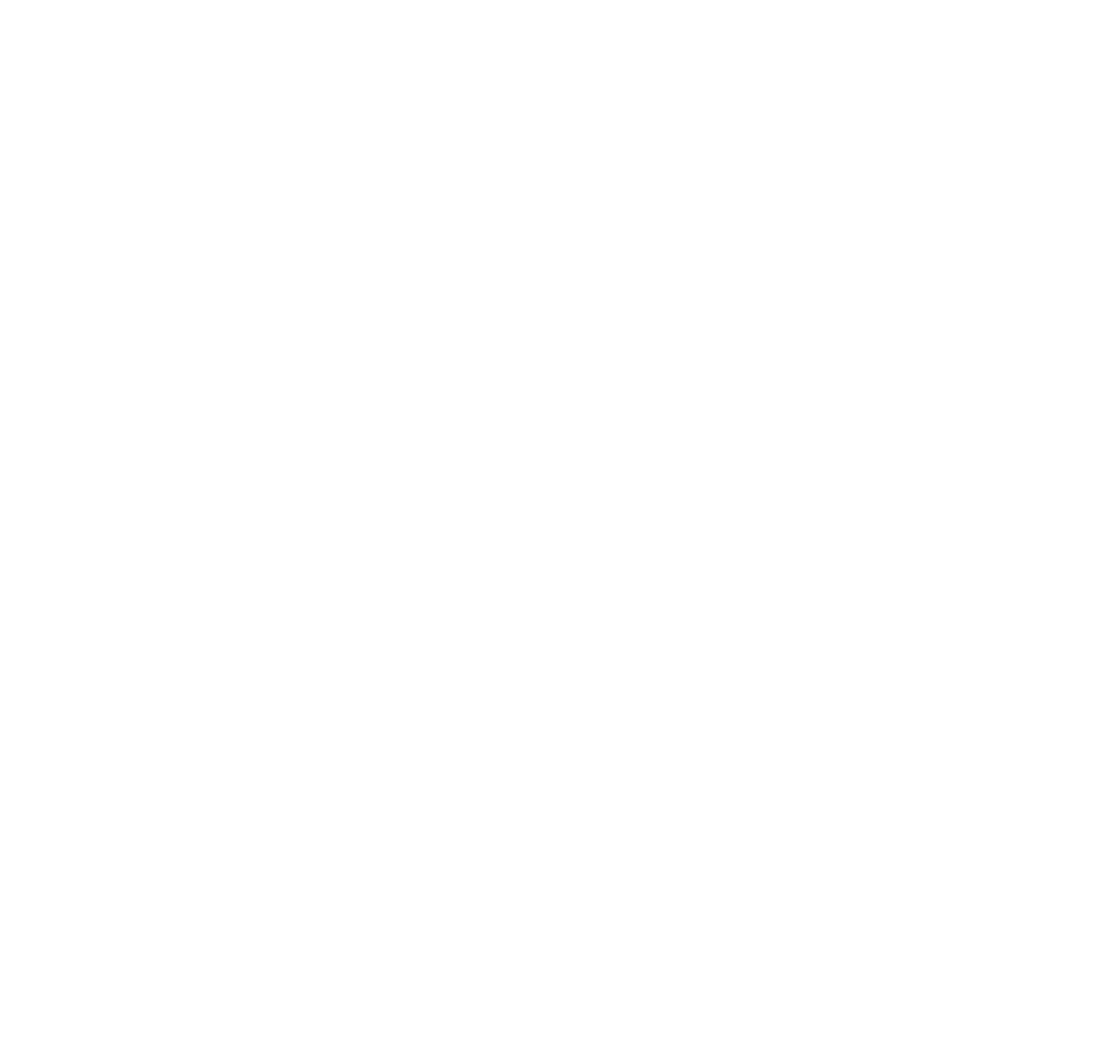

BLACK DIAMOND RODS
All Sizes Are Available In Pre-Curved And Straight Configurations
| 35mm | 55mm | 75mm | 100mm | 140mm |
| 40mm | 60mm | 80mm | 110mm | 150mm |
| 45mm | 65mm | 85mm | 120mm | |
| 50mm | 70mm | 90mm | 130mm | |
| * Longer rods available upon request | ||||

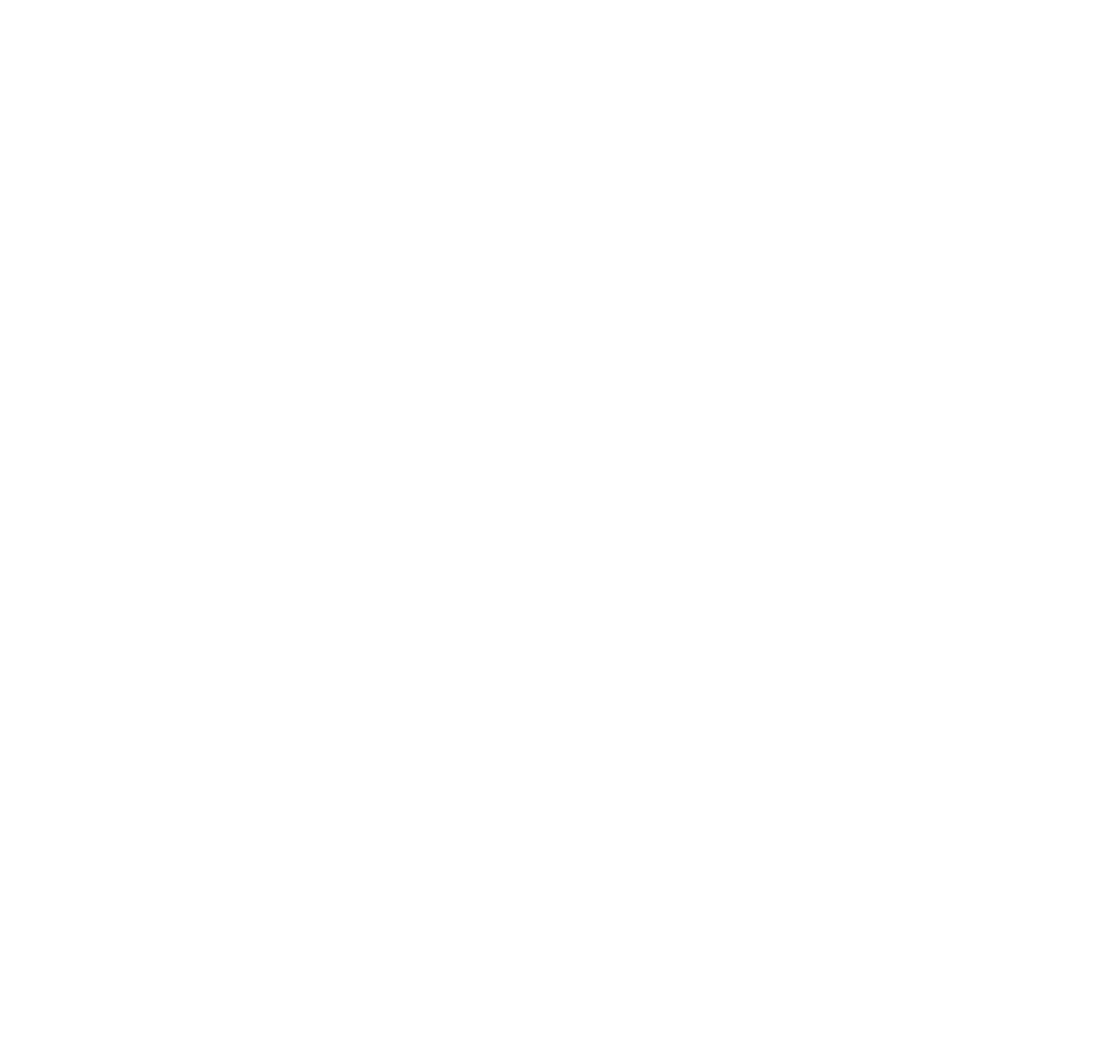

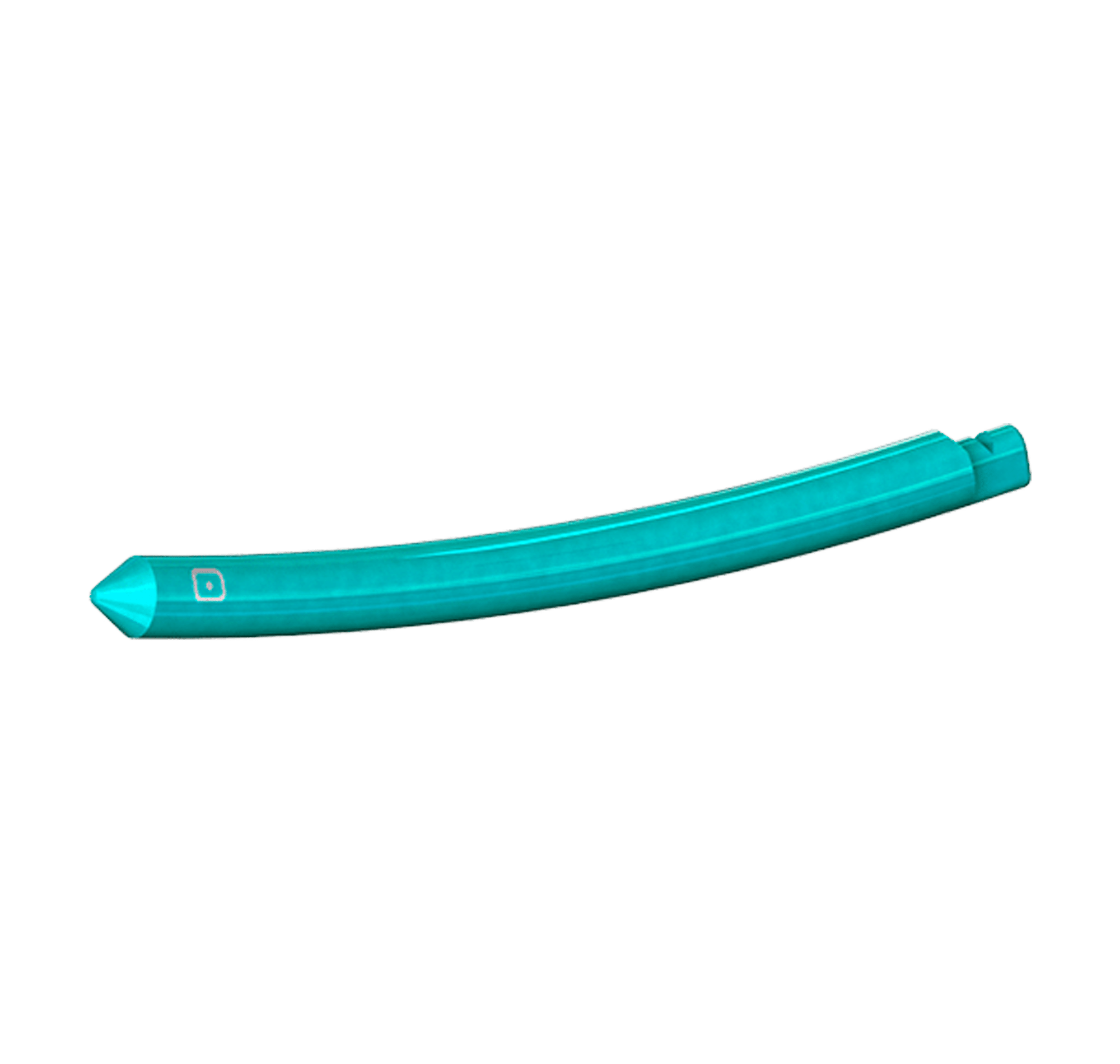

BLACK DIAMOND PERCUTANEOUS RODS
| 35mm | 60mm | 85mm | 130mm | |
| 40mm | 65mm | 90mm | 140mm | |
| 45mm | 70mm | 100mm | 150mm | |
| 50mm | 75mm | 110mm | ||
| 55mm | 80mm | 120mm | ||
| * Longer rods available upon request | ||||
All Sizes Are Available In Pre-Curved And Straight Configurations

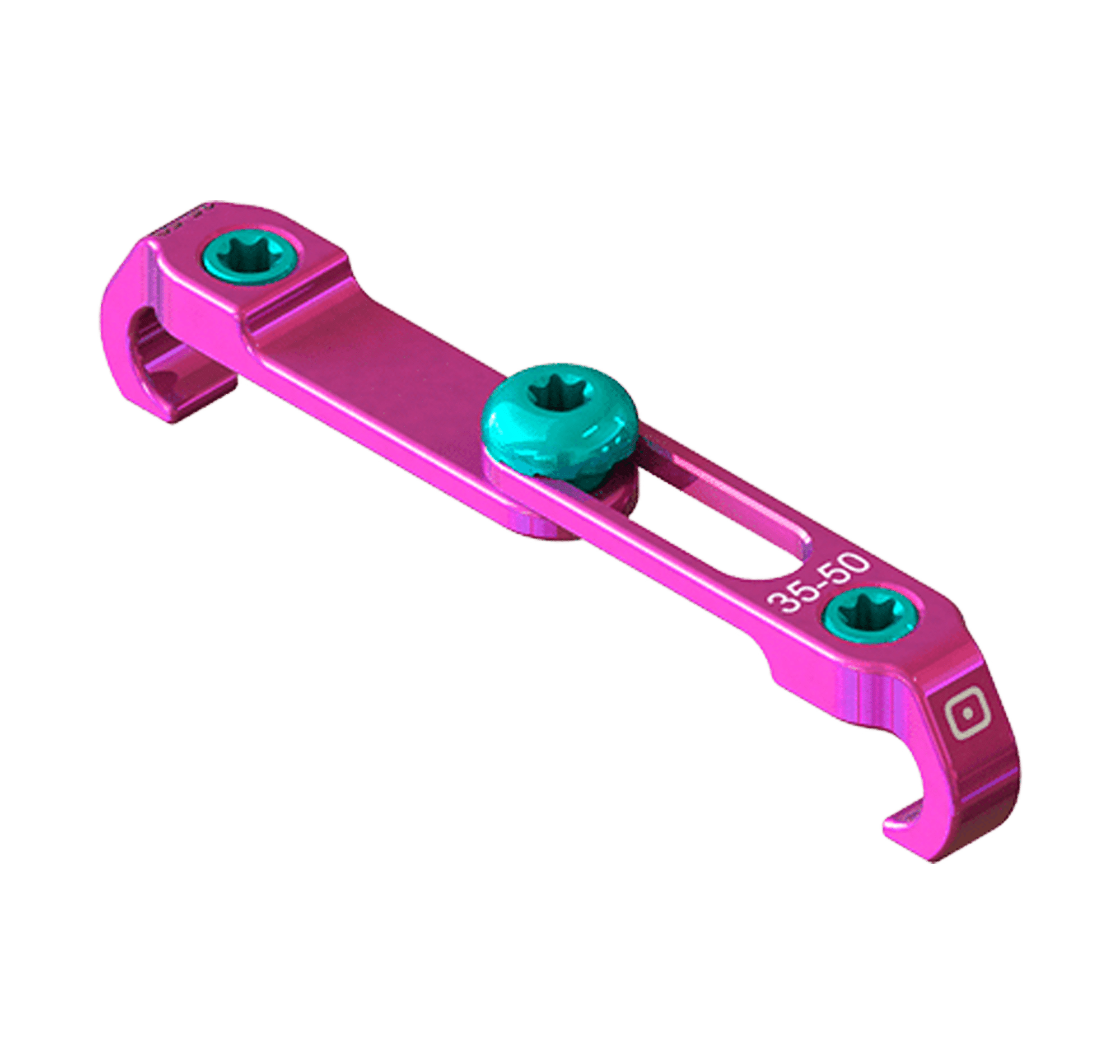

BLACK DIAMOND CROSSLINKS
| XS | Small | Medium | Large |
|---|---|---|---|
| 30-35mm | 35-50mm | 50-70mm | 70-90mm |

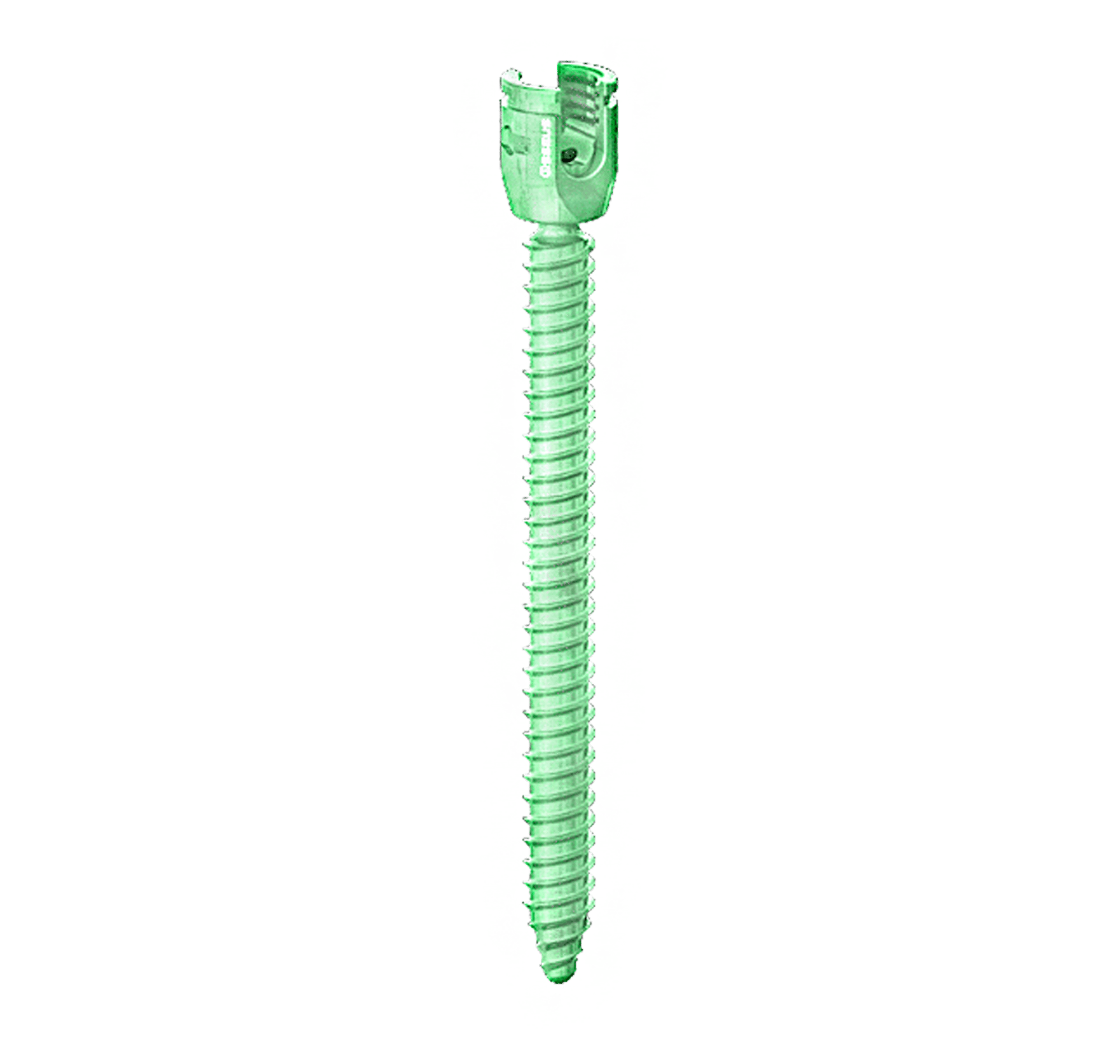

BLACK DIAMOND ILIAC BOLTS
| ⌀8.5mm |
|---|
| 60mm |
| 70mm |
| 80mm |
| 90mm |

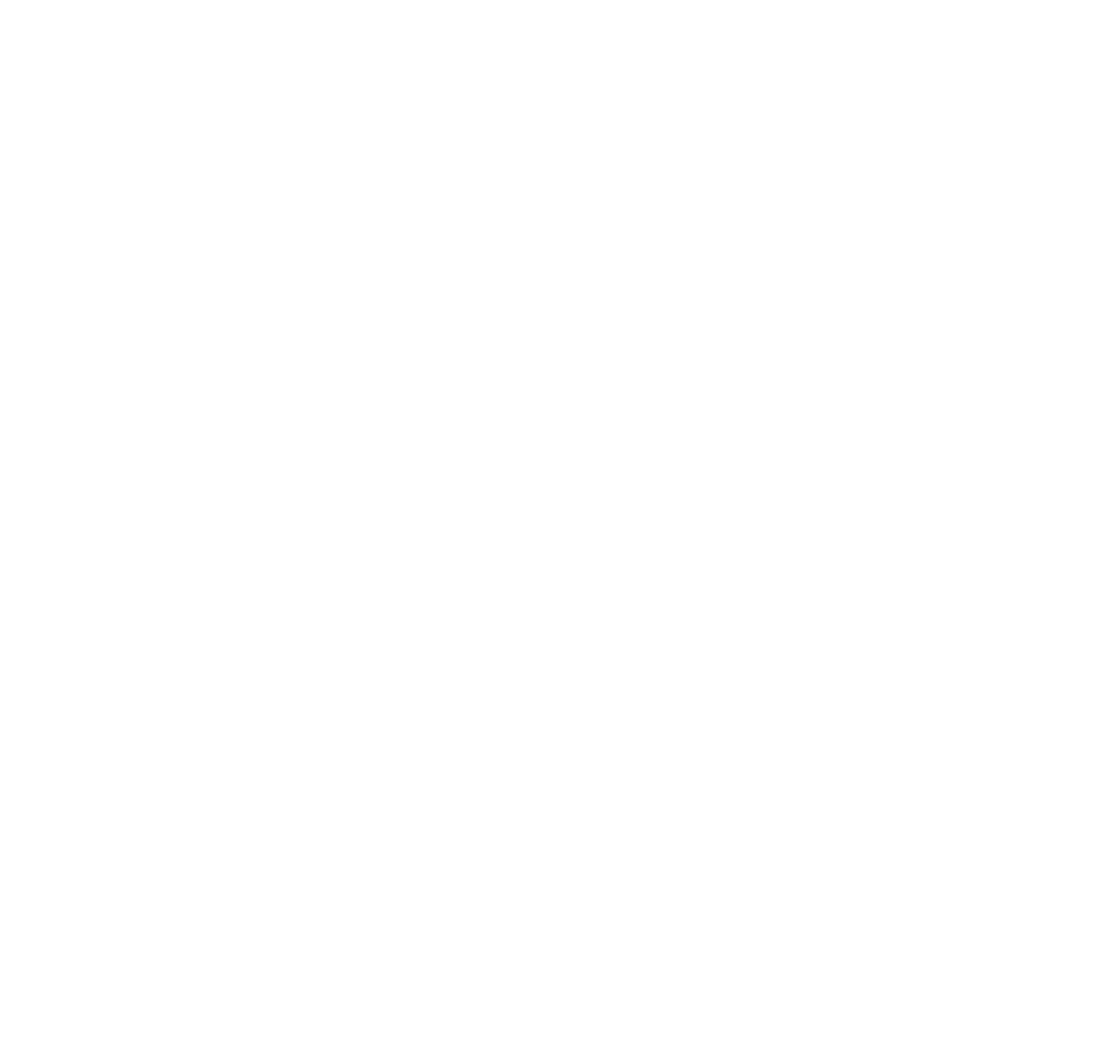

BLACK DIAMOND ROD CONNECTORS
| Axial | Lateral | Offset |
|---|---|---|
| Small / In-Line | Small / Parallel | Neutral / 35mm |
| Large / Parallel |
*Not Yet FDA Approved.
